Diamond Tooling: Essential for Concrete Surface Perfection

Diamond tooling is vital for attaining excellent outcomes when working on concrete floors. Whether you
’
re polishing a brand-new floor or restoring an old one, selecting the appropriate diamond tools is crucial. Concrete floors, particularly polished ones, have become a favorite among contractors and clients globally, finding applications in industrial plants, manufacturing centers, residential buildings, and high-end corporate offices.

An Overview of Diamond Tooling

Diamond tooling utilizes diamond grains—one of the hardest materials on the planet—to cut or polish concrete surfaces. This gives it a clear edge over tools that rely on conventional abrasives like corundum and silicon carbide. The bond, which holds the diamonds, plays a key role in determining how the tool performs.

• Metal-bonded diamonds are highly effective at removing brittle adhesives.
• Carbide-bonded diamonds are ideal for tackling tacky adhesives, leaving a smooth surface without harming the concrete.
• PCD-bonded diamonds are aggressive and excel at stripping away epoxy coatings and adhesives.
• For hard concrete, soft-bonded diamonds are necessary to maximize productivity. On the other hand, hard-bonded diamonds are better suited for soft concrete.

The segment of the tool, the raised part that holds the bond, is also important. More segments mean less pressure on each one, while a single segment has to bear all the pressure. The grit of the diamond tooling, which indicates the size of the diamonds in the bond, influences the final finish of the ground surface.

Steps for Using Diamond Grinding on Concrete Floors

Turning a floor into a polished masterpiece starts with thorough preparation. This involves cleaning and sanitizing the surface, as well as removing all accumulated residues and coatings. Leaving these coatings in place can severely compromise the success of any concrete polishing project.

• The diamond grinding process is tailored based on:
• The type of residue present
• The hardness of the concrete
• The desired finish
• The area’s square footage

Assessing Concrete Hardness

Picking the right diamond bond is key to boosting productivity. First, determine if the concrete is soft, medium, or hard. A Mohs Hardness Test, which rates hardness on a scale from 1 to 10, can help with this assessment.

Top Tools for Grinding

The success of grinding a concrete floor is closely tied to the choice of diamond tooling, a core part of any grinding equipment. It’s essential to match the diamond tool to the concrete’s specific properties and the project’s desired result.

Here’s a look at some top tools for concrete grinding:

• Diamabrush Mastic Removal Tool: Efficient at removing mastic, carpet or tile adhesive, thin-set, and thin-mil coatings such as urethane or paint. It uses rigid, exposed diamond-coated blades to grind away tough coatings, creating a level floor with regular use. The blades retain their sharp cutting edges throughout the tool’s lifespan, fit various rotary flooring machines, and have a low-profile design to navigate concrete gaps. Applying water helps reduce dust and flush away debris, and the replaceable blades save money.

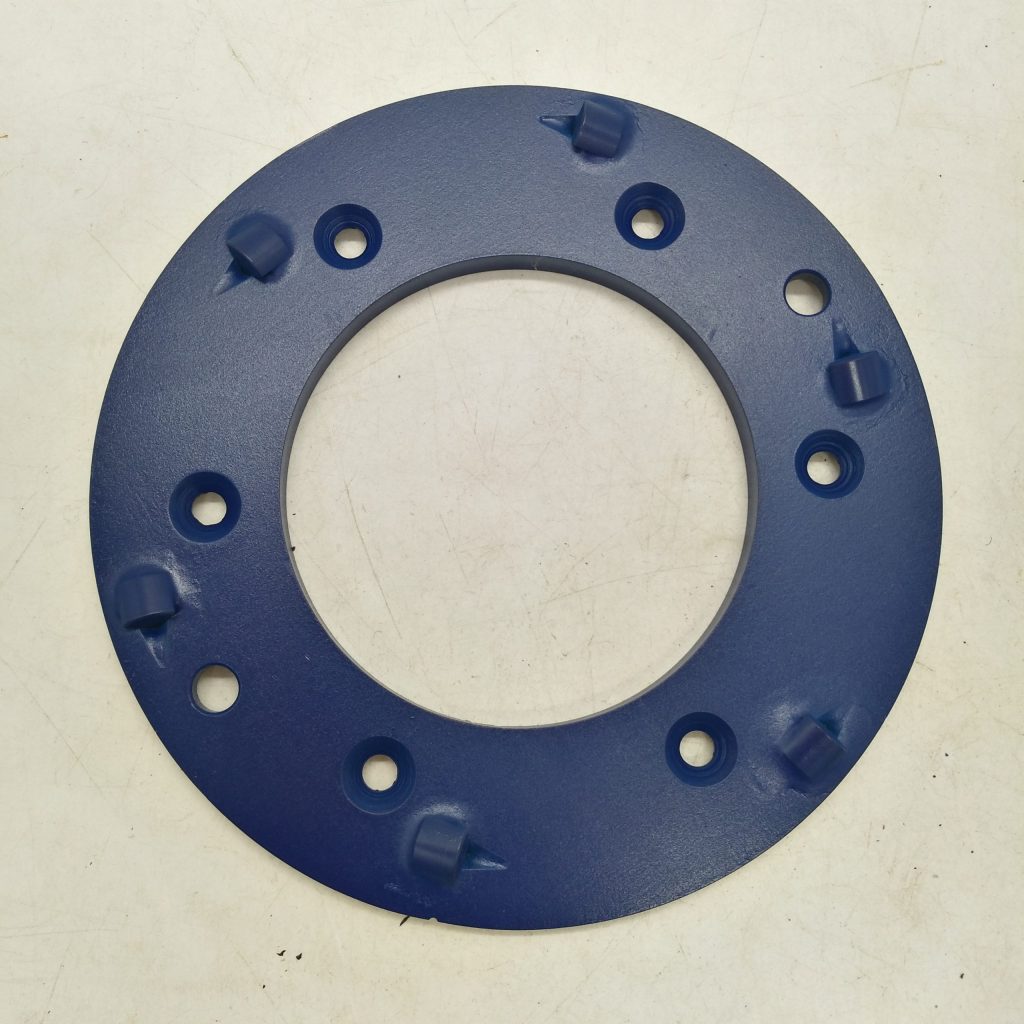

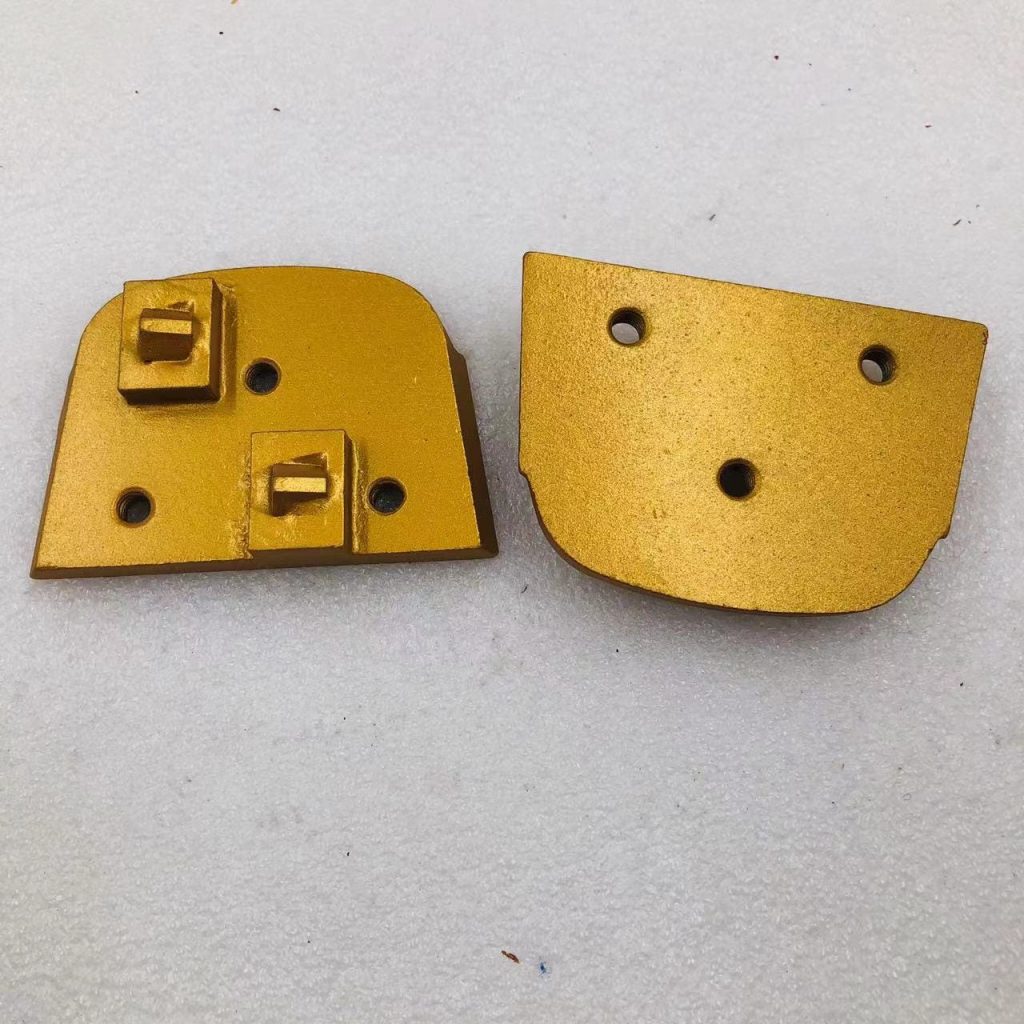

• Husqvarna Piranha PCDs: Great for eliminating hard-to-remove coatings, adhesives, and screeds. The specially formulated Pirahna PCD diamond scraper inserts ensure long wear and high productivity. They’re designed for use with the PG machinery range and the Redi Lock system, available in single or double quarter-round PCD with a protective diamond strip, and can be re-tipped when worn.
• HTC Metal-Bond T-Rex Series: Instead of grinding coatings, it removes them, including thick ones like paint, epoxy, varnish, acrylic, glue, and screed residue. It leaves a finer scratch pattern and a suitable surface profile for installing new floor coverings. The T-Rex EZchange Gold allows users to select the right grinding pressure.

To achieve the desired finish efficiently, it’s important to understand how to choose the right diamond tooling.

Trends in Diamond Tooling

One of the most popular trends in diamond tooling today is transitional or hybrid diamond tooling. This approach combines the deep cutting and grinding capabilities of metal tooling with the gentler polishing action of resin tooling, simplifying the shift from grinding to polishing. Additionally, diamond-impregnated pads are growing in popularity due to their ease of use and longer lifespan compared to traditional diamond tooling.
