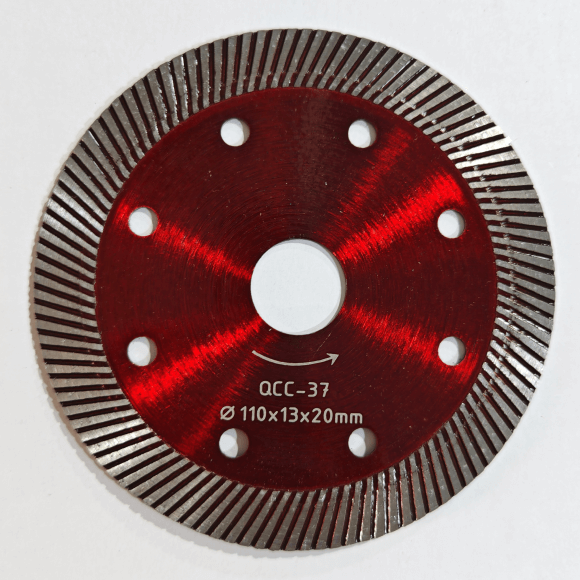

QCC-37 Ceramic Diamond Blades (Copy)

OPTIMAL MATERIAL:
Ceramic, Porcelain, Dekton

DIAMETER:
105mm 110mm 115mm

SEGMENT:
10mm 12mm

ARBOR:
20mm (ring: 15.8mm)

USAGE:
Dry

Category:

QCC-37 Ceramic blades designed for professional tiler, this sintered diamond cutting blade delivers exceptional performance across diverse construction tasks. Crafted with premium quality, it offers an outstanding cost-per-cut ratio, ensuring long-term value and economic efficiency for every job.

The 12 mm thick blade is highly versatile, effortlessly slicing through common construction materials such as concrete, bricks, tiles, and natural stone.

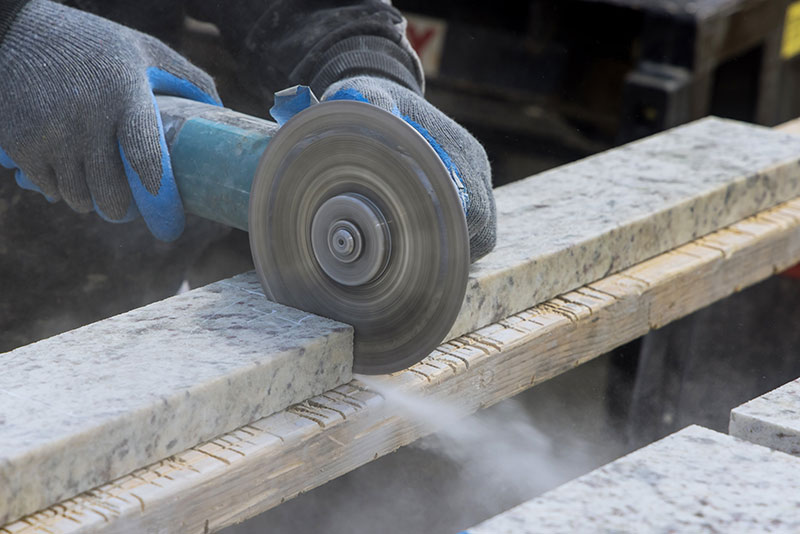

Processing drawing2

The DTP blade stands out for its rapid cutting speed, thanks to its angled turbo segments and narrow gullets. This innovative design minimizes the risk of segment loss while enhancing cutting efficiency. Additionally, the keyhole gullet structure effectively clears debris, reducing the likelihood of dust accumulation and tip breakage during operation.

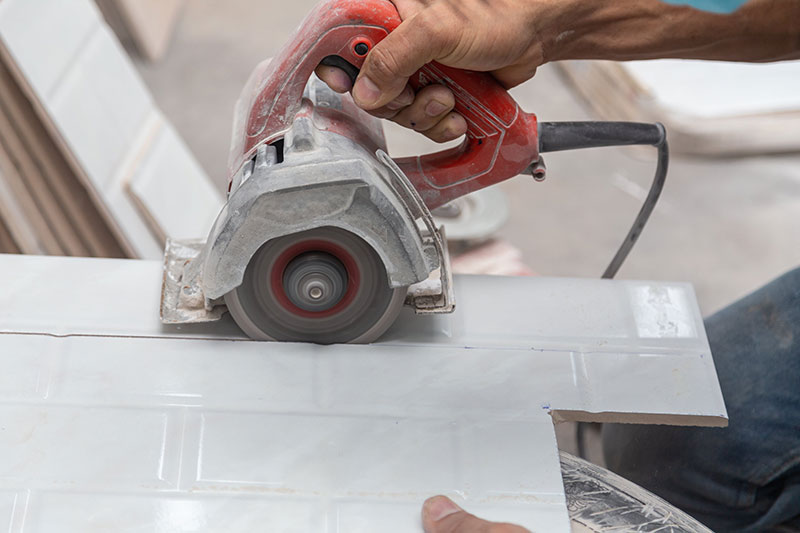

Processing drawing1

Constructed with high-grade diamonds, the blade provides superior cutting power for precise and clean results, even on the toughest surfaces. Its pre-stressed metal body ensures exceptional durability, withstanding extreme pressure when working with hard materials.

This blade is compatible with both wet and dry cutting applications, offering flexibility to adapt to various job site conditions. It is engineered to deliver maximum performance and an extended service life, making it an indispensable tool for professional construction environments.

QCC-37 Specificaiton (Size: mm)
SIZE SEGMENT ARBOR PART #
105 10 20
(ring: 15.88)
S7-105-10
12 S7-105-12
110 10 S7-110-10
12 S7-110-12
115 10 S7-115-10
12 S7-115-12

Key Features:

– 12 mm Segment Thickness: Enhances durability and extends lifespan.

– Exceptional Value: Offers a favorable cost-per-cut ratio for long-term savings.

– Efficient Debris Removal: Keyhole gullets clear dust and debris from the cutting surface.

– Dual Cutting Compatibility: Suitable for wet or dry cutting, providing operational flexibility.

Download “110mm Ceramic Blade Test Report” 110mm-Ceramic-Blade-Test-Report.pdf – Downloaded 2 times – 194.29 KB
